Insignia

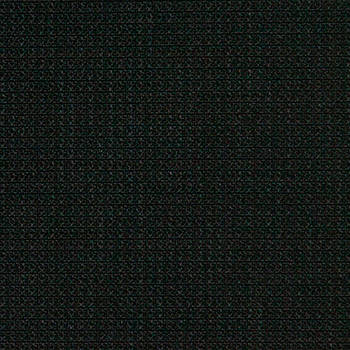

1008316 Abyss

Made in the USA
Crypton Seating Fabric
Bleach Cleanable

Flammability Wet Dry Crock Colorfast Phys Prop Abrasion

*

*ACT® Registered Certification Marks

Technical Details

Fabric Specifications
Content 65% Post Industrial Recycled Polyester
35% Post Consumer Recycled Polyester
Finish Crypton Green
Backing Crypton Green
Bleach Cleanable Yes
Ratio: 90% Water / 10% Bleach Solution
Weight 22.1 oz. per linear yd
Width 54"
Roll Size 50 yards
Ends/Picks Ends: 45 per inch
Picks: 45 per inch
Directional Yes
Railroaded No
Made in the USA Yes
Performance Characteristics
Abrasion Resistance ASTM D4966-12 50,000 double rubs*
Brush Pill ASTM D3511 5
Tensile Strength ASTM D5034 Warp: 273.9 lbs.
Fill: 355.1 lbs.
Tear Strength ASTM D2261-07 Warp: 49.1 lbs.
Fill: 60.8 lbs.
Seam Slippage ASTM D1683-07 Warp: 73.7 lbs.
Fill: 87.1 lbs.
Colorfastness to Crocking AATCC 8 Dry: 4.5
Wet: 4.5
Colorfastness to Light AATCC 16 Hours: 40.0
Class: 4.0
Flammability**
CAL TB 117-2013 Passes
NFPA 260 Class 1
UFAC Class 1
Recommended Cleaning
Please refer to Detailed Cleaning Instructions.
Although we try hard to make sure colors on our site are accurate, actual colors may vary. Please order samples prior to making a purchase.
Final determination of the suitability of this product for an application rests with the user.
* Abrasion test results exceeding ACT Performance Guidelines are not an indicator of product lifespan. Multiple factors affect fabric durability and appearance retention.
** This term and any corresponding data refer to the typical performance in the specific tests indicated and should not be construed to imply the behavior of this or any other material under actual fire conditions.
